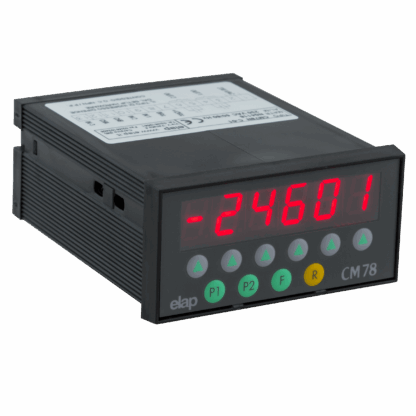

CM 78N
Product Description
Multi-functional counter/visualizer
6 displayed digits
Counter or positioner type available
2 presets
Settable operational modes
Available in the counter or visualiser version, CM78N includes different functionalities in one unit: the type C01 operates as 2-preset counter, as partial/total counter and as cycle counter with cycle preselection, while the visualiser type C02 can be employed as position display, 2-setpoint visualiser or as absolute/relative visualiser with two setpoints.
A list of freely settable parameters (inputs/outputs type, operating cycle, counting direction, decimal point position, multipying factor) allows to tailor CM78N to several applications on industrial operating machines.
Functions and data are easlily entered via the front keys.
TECHNICAL SPECIFICATIONS
- 6 displayed digits
- mono/bidirectional input
- count frequency (primary wave) 25 KHz
- NPN or push-pull encoder inputs
- 2 relay outputs 250V 3A
- 2 presets
- supply voltage 115 or 230 or 24Vac, 50/60Hz or 12 or 24 Vdc (to be defined in the order)
- microprocessor with re-writable memory
- Dimensions: mm 96×48, dept mm 105, panel cut off mm 92×45
OPERATING MODES CAN BE FREELY SET BY THE USER
- Decimal point position
- correcting factor from 0.01 to 9.99999
- multiplication of the input pulses by 1 or by 4
- 12รท24 Vdc external functional inputs NPN or PNP, selectable by software
- single or repeat cycle, up or down counter (for type C01 only)
- solid state or time outputs
- partial/total counter (type C01) or absolute/relative visualiser (type C02)
- cycle counter (type C01 only)
