Digital Signal Converter
Product Description
Digital Signal Converter with Potentiometer Input

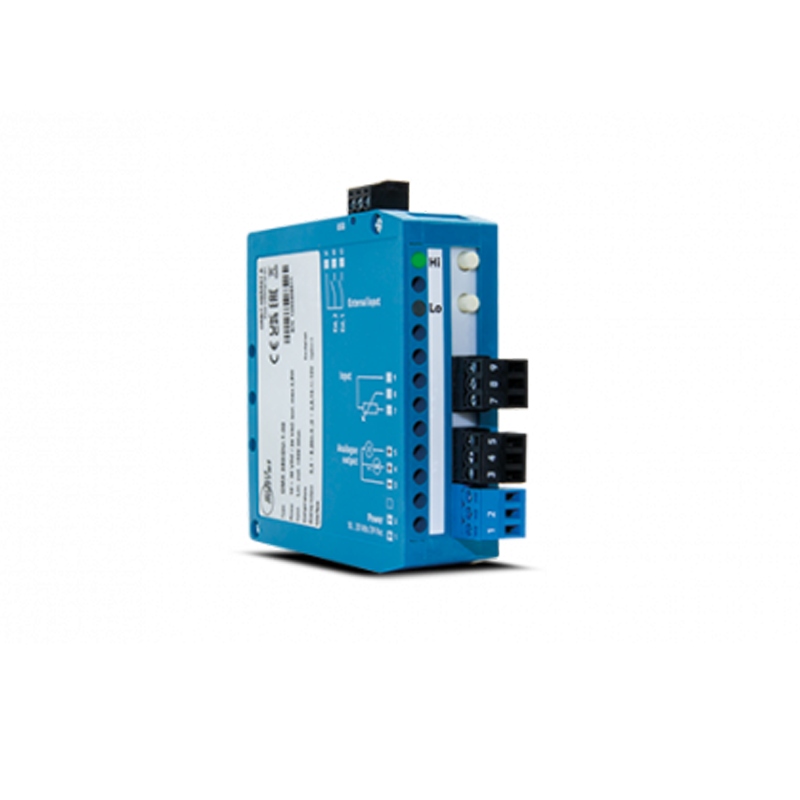

OMX390DU is an isolated digital transmitter, which can be coupled to a linear potentiometer to obtain the analogue signal output.
Setting of both the input and output ranges can be done conveniently by a DIP switch located on the side of the housing or from a PC via the OM Link SW.
The device is based on a 32-bit processor, fast 24-bit ∆Σ ADC with PGA and 16-bit DAC, which guarantees high accuracy and excellent stability.
TECHNICAL FEATURES
Input for potentiometer
Output 0/4÷20 mA – 0÷5 mA – 0÷2/5/10 V / ±10 V
Rate up to 7200 meas./s
Teach-in, Digital filters, Tare, Linearization
Quick configuration by DIP switch
PC configurable via USB port
Galvanic separation 2.5 kVAC
Power supply 10÷30 VDC/24 VAC
Fast mounting on DIN bar
