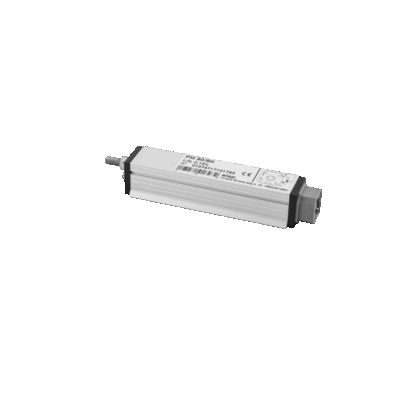

PM Series
Product Description
Small Size
Thanks to their small size – 21 mm square section case – the linear potentiometers seris PM can be profitably employed for those applications where limited dimensions are a critical factor. The series strokes range from 25 to 150 mm.
The mounting operations are easy, as potentiometers are fastened by means of the provided brackets, which can be placed freely along the body, or on air, by means of ball joints.
The stout extrused aluminium housing grants a high protection degree against environmental agents.
AVAILABLE STROKES
mm 25 – 50 – 75 – 100 – 150
AVAILABLE RESISTIVE VALUES
5 Kohm (standard) – 1 Kohm for stroke 25 mm
TECHNICAL SPECIFICATIONS
- Conductive plastic resistive element
- 100,000,000 operations life
- Infinite resolution
- Excellent linearity
- Moving speed up to 5 m/sec.
- Rod diameter 5 mm
- Stout aluminium housing
- Easy fixing by clamping brackets or ball joints
- Electrical connections by orientable connector
- Operating temperature: -20° ÷ +80° C
- IP64 protection degree
- Available fittings: return spring (up to 100 mm), ball joint 5 mm diameter, self-aligning joint, feeler pin
