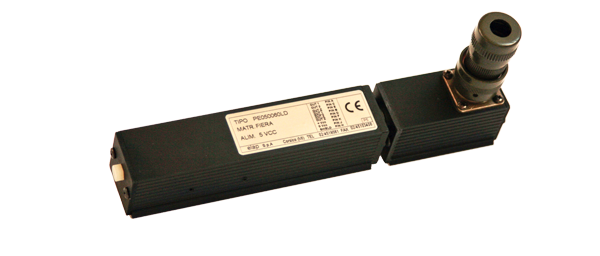

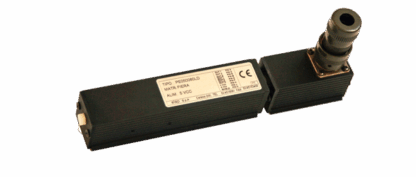

Linear Transducer PD/PE

Linear transducers Series PD – PE

Product Description

High reading resolution (up to 0.005 mm) • Easy mounting method • High protection against environmental agents (IP65) • Strokes: 60 ÷ 990 mm

Accurate, strong, easy to mount, and weatherproof, the transducers series PD and PE are the ideal solution when you need to measure thickness or control linear displacement on any kinf of industrial machine.

There are three available standard versions, each one with or whitout zero pulse:

  • PD100: reading resolution 0.01 mm
  • PD500: reading resolution 0.005 mm
  • PE050: reading resolution 0.05 mm

Further types for special purposes are also at disposal:

  • Pressurized version with compressed air connection available – IP67 protection – cable outlet

AVAILABLE STROKES

  • PD100: mm 60, 120, 170, 200, 220, 255, 280, 360, 380, 440, 520, 580, 650, 750, 990
  • PD500: mm 60, 120, 170, 200, 220 255, 280, 360, 380, 440, 520, 580, 650, 750
  • PE: mm 60, 120, 150, 170, 200, 280, 360, 440, 520, 580, 650, 750, 990

TECHNICAL SPECIFICATIONS

  • Supply voltage 10/24 or 5 Vdc – Power consumtion 30/80 mA
  • Output signals: Push-pull, NPN open collector, Line driver
  • Signals protected against short circuits
  • Cable or Connector outlet – flying tap included
  • IP65 protection degree
  • Fixing by movable feet or ball joints at the ends
